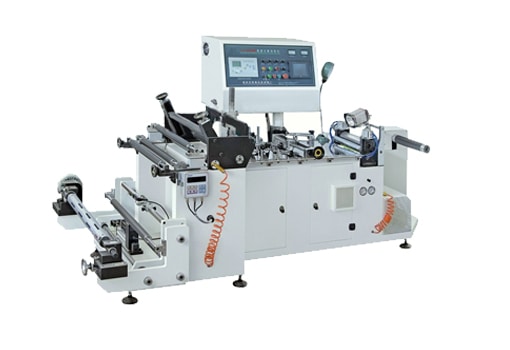

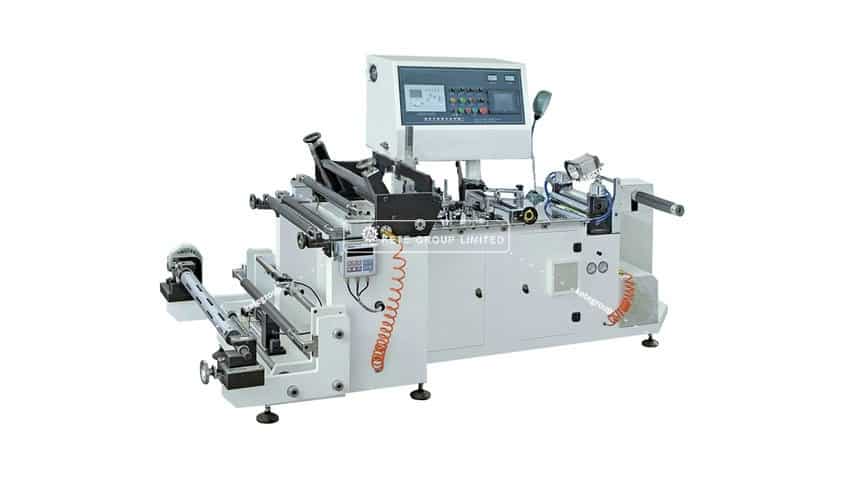

KTGS-A Series Shrink Sleeves Seaming Machine

Future:

This High Speed shrink sleeves seaming machine is use to seaming PVC or PET Shrink film material into tube type. it is widely use for bottle label or wine bottle capsules or security sealing capsules.

 Performance and Characteristics:

  • Unwind tension use magnetic power brake.
  • Unwind and rewind tension control by CPU.
  • Unwind use EPC control system.
  • The in-feed steel roller used Bake plated processing polished.
  • The in-feed rubber roller open spiral groove.
  • The in-feed steel roller use separate inverter motor control.
  • Rewind roller use inverter motor to control.
  • The glue feeding speed synchronous with machine speed.
  • All aluminum roller surface use Anode treatment.

Machine Price: US$ 20,000.00 - 25,000.00

Shrink Sleeves Samples

Shrink Sleeves Seaming Machine Video

Machine Specification

Model

KTGS-A250

Raw Material

PVC / PET / PET-G Shrink Film

Film Thickness

20-80 mic

Max. Unwind Diameter

500mm

Max. Unwind Width

60-600mm

Center Sealing Precision

±0.3mm

Max. Rewind Diameter

700mm

Max. Rewind Width

250mm

Seaming Speed

250-300m/min

Rewind Tension Range

5-50N

Machine Power

3.5kw

Machine Voltage

3 Phase 220/380/440V 50/60Hz

Machine Weight

about 1000kg

Machine Size(LWH)

3700 x 1500 x 1750mm

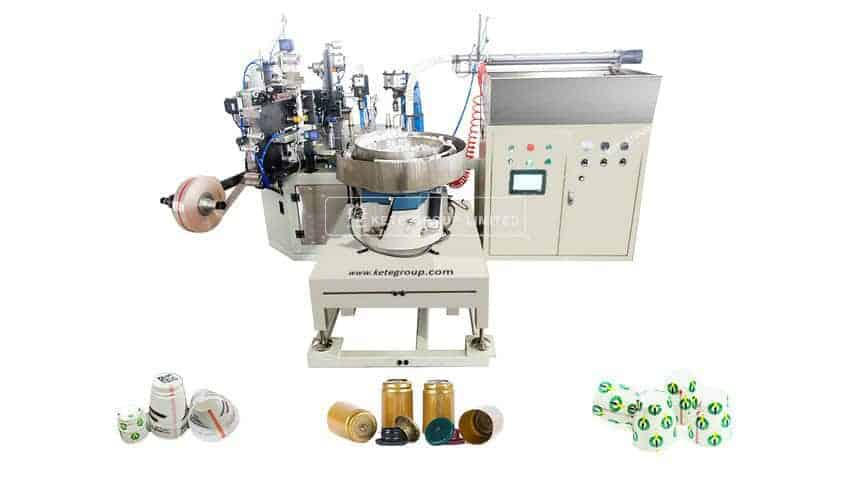

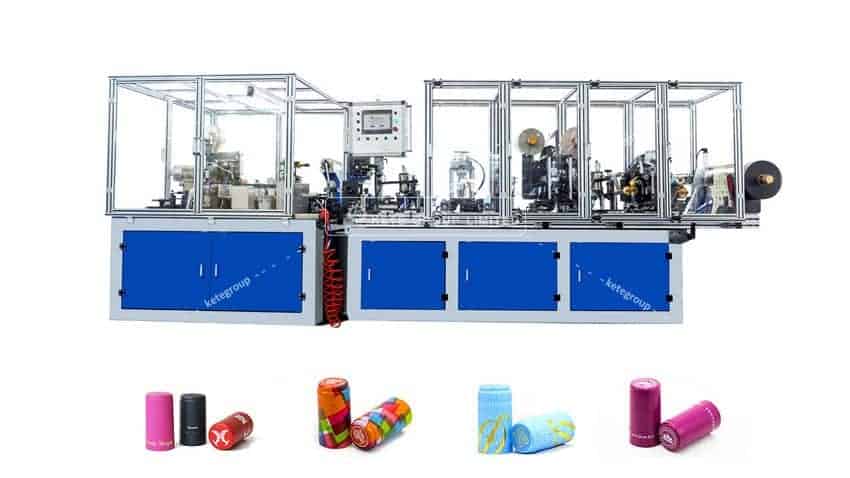

Other Relate Machines
