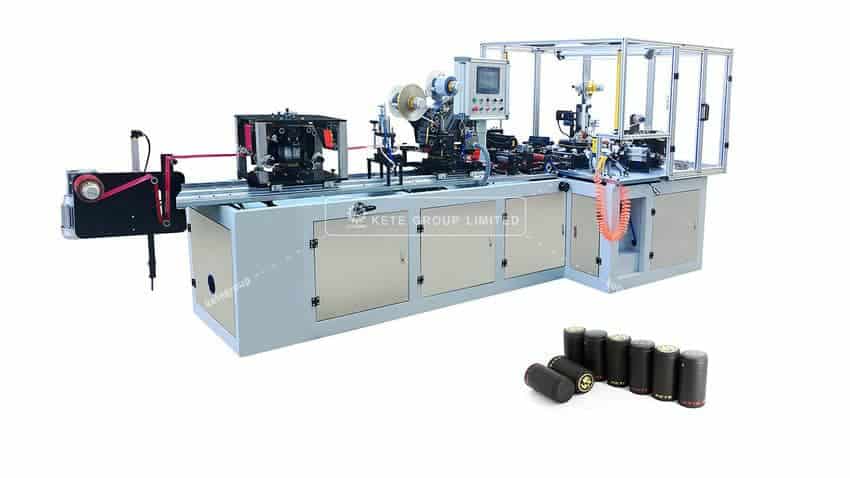

KTPC-C Series Fully Automatic Wine Capsule Machine

Feature:

This Wine Capsule machine uses the shrinkable PVC or PET-G film or Polylaminate material to make Wine Capsules with different optional functions. it is wildly used for red wine bottles, white wine bottles, olive oil bottles, sprits wine bottles, Vodka Bottles, yellow wine bottles, beer bottles, condiment bottles security beauty sealing.

Machine Function:

  • Capsules Skirt Horizontal Perforation
  • Capsules Skirt 1 color hot stamp
  • Capsules Skirt 2 color hot stamp
  • Capsules Horizontal tear-off tape
  • Capsules S type tear-off tape
  • Capsules Horizontal tear-off tape with perforation
  • Capsules Top disc 1 color hot stamp
  • Capsules Top disc 2 color hot stamp
  • Capsules Top disc 1 color raised printing

Machine Price: US$ 100,000.00 - 180,000.00

Wine Capsules Samples

Wine Capsules Machine Video

Machine Specification

Model

KTPC-C

Materials

Shrink PVC Film / PET Film/Polylaminate

Unwind Diameter

600mm

Unwind Width

115mm

PVC /PET Film Thickness

70-75mic

Polylaminate Material Thickness

100-120mic

Speed

100-120pcs/min

Capsules Top Diameter

φ28mm~φ34mm

Capsules Bottom Diameter

φ30mm~φ36mm

Capsules Height

30mm~70mm

Capsules Taper

1.5°~5°

Total Power

12.5kw

Machine Weight

3500kg

Machine Size

5200 x 2200 x1800mm
