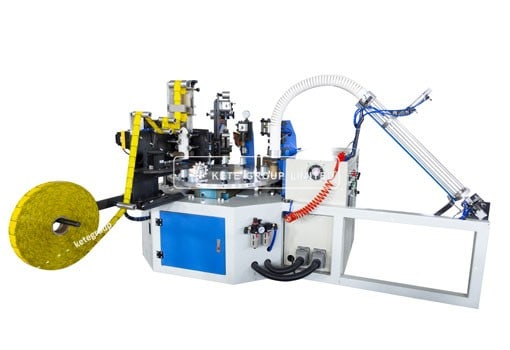

KTPC-AB Series Big Water PVC Capsule Making Machine

Feature:

This PVC Capsule Making machine use the shrinkable PVC or PET film to make the Shrink PVC or PET Capsules with or without top disc, and different optional functional. it is wildly use for water tank or beer tank security sealing.

 Performance and Characteristics:

  • Use tube sleeve type shrink PVC or PET material
  • Capsules skirt can optional horizontal type perforation.
  • Capsules skirt can optional vertical type perforation.
  • Capsules top disc can support laminated aluminum foil.
  • Capsules top disc can support no shrink PVC film.
  • Capsules skirt and top disc support printed material.
  • Machine with auto counting system.
  • Machine use PLC touch screen control
  • Electrical part use Schneider.
  • Inverter use Delta brand.

Machine Price: US$ 28,000.00 - 38,000.00

Wine Capsules Samples

Wine Capsules Machine Video

Machine Specification

Model

KTPC-AB

Materials

Shrink PVC Film or PET Film

Unwind Diameter

1000mm

Tube Film Diameter

≥36mm

Capsules Height

20mm~70mm

Film Thickness

30-70mic

Speed

20-80pcs/min

Total Power

3.5kw

Machine Weight

800kg

Machine Size

2400 x 2200 x1800mm
