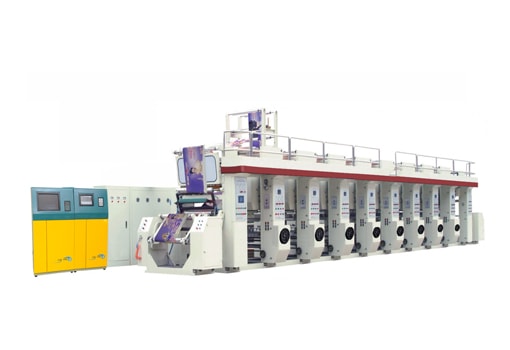

KTMS-B Series Rotogravure Printing Machine

Feature:

This printing machine is suitable for roller to roller printing plastic film, aluminum Foil, BOPP, PET, PVC, PVC Foil, PE, CPP and Paper etc. It is widely use in high quality packaging material printing.

Unwind and Rewind With Double-Armed Rotary Type Design.
Unwind and Rewind Manual Splicing and Cutting.
Doctor Blade Pneumatic Type Design.
Doctor Blade Moving Controlled By Separate Motor.
Shaft-less Pneumatic Type Printing Cylinder Installation Design.
Auto Ink Recycle System.
With Computer Auto Color Register System and Web Video Inspection.
Optional: 3 / 5 / 7 Drive Tension Control System, Water Chilling System.

Machine Price: US$ 25,000.00 - 150,000.00

Printing Samples

printing plastic sample

printing aluminum foil sample

printing pvc film sample

Rotogravure Printing Machine Video

Machine Specification

Model	KTMS-B
Flow-direction	Right to left
Printing Colors	4 colors up to 10 colors
Maximum Printing Width	600 mm up to 1800mm
Maximum Printing Speed	10-120m/min (roller diameter ≥ 160mm) The printing speed base on the printing material, printing cylinder, inks, printing crafts, operator technical etc.
Unwind Diameter	Φ600mm
Rewind Diameter	Φ600mm
Printing Cylinder Diameter	Φ120mm~Φ300mm
Printing Cylinder Width	620mm~1050mm
Color Register Precision	±0.10mm (Vertical, BOPP or PET)
Tension Range	2~50kg
Tension Precision	±0.3kg
Paper Core Diameter	Φ76mm (3 inch)
Printing Rubber Roller Pressure	400kg
Blade Moving Range	±5mm
Heating Way	Electrical heating
Drying Method	Electric Heating (112KW) 8 colors
Main Motor Power	AC 11kw
Total Power:	About 165kw
Machine Weight	About 18000kg
Machine Power	3 Phase 220/380/440v 50/60Hz
Machine Size(LWH)	13600 × 2700 × 2750(mm)
